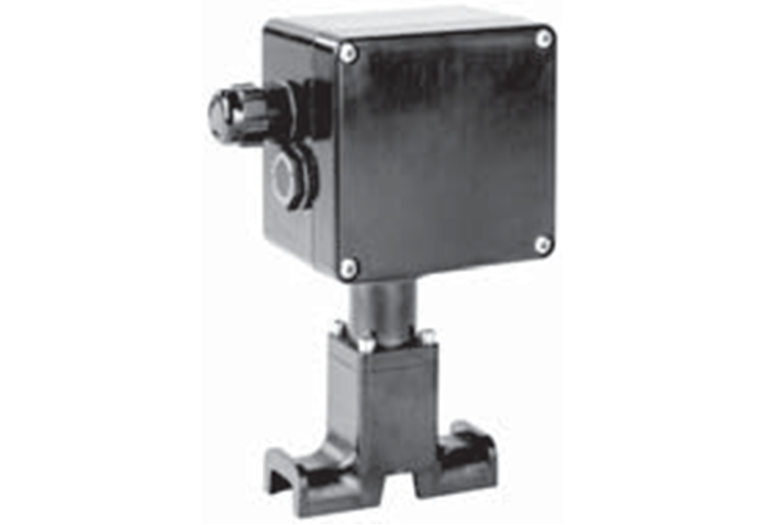

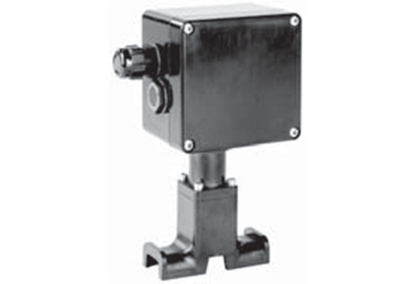

The PBS Single Entry Power junction box is designed to connect one BARTEC self-regulating heating cable to power or to form a splice or powered splice. The PBM Multiple Entry Power junction box is designed to connect up to three BARTEC self-regulating heating cables to power or splice up to three trace heaters. Depending on the type, one, two or three CAK connection and termination kits are included in every PBS and PBM kit. ON Pipe Stand: Type -200 Pipe mountable power junction box kit, integrating the functions of an insulation entry and power connection kit within a polyester enclosure. OFF Pipe Stand: Type -300 Off-pipe mountable power junction box for remote mount of power kit with a galvanized steel bracket and mounting plate and a IP66 / Type 4X certified polyester enclosure. Insulation Entry Kits (IEK) must be ordered separately.
Build size allows up to 120 mm of thermal insulation
On and Off-Pipe (Tankwall) mountable versions
Including cold applied power and end termination kit (CAK)
Fast installation and maintenance-free operation with spring type terminals
